10/100M Media Converter
10/100M Media Converter
10/100Mbps adaptive 100M Ethernet Media Converter adopts switching technology for media conversion, conforms to IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab standards, and supports two types of media network connections: 10Base-T, 100Base-TX and 100Base-SX/LX convert 10Base-T and 100Base-TX twisted pair electrical signals to 100Base-SX/LX optical signals. It extends the network's transmission distance from the 100-meter copper limit to 80Km. Supports dual-fiber multimode, dual-fiber single-mode and single-fiber single-mode fiber transmission.
Features
* Automatically adapt to 10Mbps and 100Mbps environments for easy network upgrade
* Built-in efficient switching core for flow control and reduced broadcast packets
* Support full-duplex and half-duplex transmission mode, auto-negotiate
* Support electric port twisted pair straight-through cross-adaptation, convenient system debugging installation
* The optical port supports the 100Base-FX optical fiber transmission standard and can communicate with other products.
* Support low latency transmission
* Support for long packet transmission
* Support VLAN long packet transmission
* Support QoS to ensure VOIP packet transmission
* Ultra-low power consumption (less than 2W), stable operation for a long time
* Supports dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode multiple fiber optic port selection, extending the needs of users
Technical Specifications
parameter
Specification
Access method
10/100Mbps
standard
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control
wavelength
850nm/1310nm/1550nm
Transmission distance
Double fiber multimode: 2Km
Double fiber single mode: 20/40/60/80/100/120Km,
Single fiber single mode: 20/40/60/80/100Km
Category 5 twisted pair: 100m EIA 568A/B
port
1 RJ45 port: Connect STP/UTP Category 5 twisted pair
1 fiber port: Multimode—SC or ST fiber port (fiber size 50, 62.5/125μm)
Single mode - SC / FC fiber port (fiber size 9 / 125μm)
Single fiber single mode - SC / FC fiber port (fiber size 9 / 125μm)
Conversion method
Media conversion, storage forwarding/through
flow control
Full dual state: flow control, half duplex state: back pressure mode
Delay
Storage forwarding: 9.6us, straight through: 0.9us
Bit error rate
<10-9
MTBF
50,000 hours
LED indicator
POWER (power), FX LINK / ACT (fiber connection / action)
FDX (FX full duplex mode), TX LINK/ACT (twisted pair connection / action)
TX 100 (twisted pair 100M transmission rate), FX 100 (optical fiber 100M transmission rate)
power supply
Built-in: Input: AC 90~264V/DC -48V
Power consumption
<2W
Operating temperature
-10~50°C
Working humidity
5%~90%
Storage temperature
-40~80°C
Storage humidity
5%~90% non-condensing
size
Power supply built-in type: 140 × 110 × 30mm
Application
* Extend Ethernet connection to 0~120km using fiber
* Create economical Ethernet fiber/copper fiber links for connecting remote subnets to larger fiber networks/backbone networks
* Convert Ethernet to fiber, fiber to copper/Ethernet, ensuring optimal network scalability to connect two or more Ethernet network nodes (for example, connecting two buildings in the same campus)
* Designed to provide high-speed bandwidth for demanding large workgroups that need to scale Gigabit Ethernet

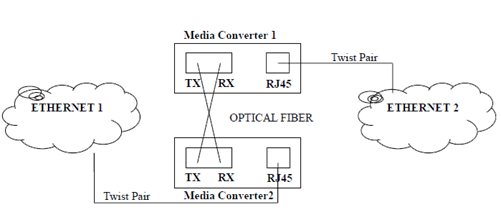

System Design

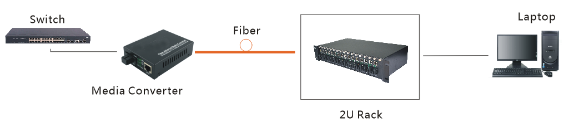

1. For the Internet

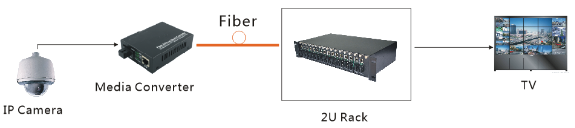

2. For CCTV Surveillance Security
Product Picture
10/100M Dual Fiber Media Converter
10/100M Single Fiber Media Converter
Order Information
P/N
Fiber Type
Wavelength
(nm)
Tx Power
(dBm)
Rx Sensitivity
(dBm)
Reach
(KM)
Loss(dBm)
EFY-950MM-2
10/100Mbps
MM
1310
-20~-12
-30
2
10
EFY-950SM-25
10/100Mbps
SM
1310
-15~-7
-34
25
19
EFY-950SM-40
10/100Mbps
SM
1310
-9~-5
-36
40
27
EFY-950SM-60
10/100Mbps
SM
1310
-5~-2
-36
60
31
EFY-950SM-80
10/100Mbps
SM
1550
-5~0
-37
80
32
EFY-950SM-100
10/100Mbps
SM
1550
-3~0
-38
100
35
EFY-950SM-120
10/100Mbps
SM
1550
0~5
-38
120
38
EFY-950SM-2A/B
10/100Mbps
MM
1310/1550
-14~-8
-30
2
17
EFY-950SM-25A/B
10/100Mbps
SM
1310/1550
-8~-3
-33
25
25
EFY-950SM-40A/B
10/100Mbps
SM
1310/1550
-8~-3
-33
40
25
EFY-950SM-60A/B
10/100Mbps
SM
1310/1550
-5~0
-37
60
30
EFY-950SM-80A/B
10/100Mbps
SM
1490/1550
-0~0
-39
80
34
EFY-950SM-100A/B
10/100Mbps
SM
1490/1550
-0~0
-39
100
34
EFY-950SM-120A/B
10/100Mbps
SM
1490/1550
-0~0
-39
120
34
Data Rate
