The 10/100/1000Mbps adaptive Gigabit Ethernet Media Converter uses switching technology for media conversion, conforms to IEEE802.3, IEEE802.3u, IEEE802.3z, and IEEE802.3ab standards, and supports two types of media network connections: 10Base- T, 100Base-TX, 1000Base-T and 1000Base-SX/LX convert 10Base-T, 100Base-TX or 1000Base-T twisted pair electrical signals to 1000Base-SX/LX optical signals. It extends the network's transmission distance from the 100-meter copper limit to 120Km. Supports dual-fiber multimode, dual-fiber single-mode and single-fiber single-mode fiber transmission.

Features

* Support 10Base-T, 100Base-TX or 1000Base-T adaptive and 1000Base-SX/LX conversion

* The optical port supports 1000Base-X optical fiber transmission standard and can communicate with other products.
* Support full-duplex and half-duplex transmission mode, auto-negotiate
* Support electric port twisted pair straight-through cross-adaptation, convenient system debugging installation
* Supports dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode multiple fiber optic port selection, extending the needs of users

Technical Specifications

parameter	specifications
Access method	10/100/1000Mbps Gigabit Ethernet
standard	EEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,
wavelength	850nm/1310nm/1550nm
Transmission distance	Dual fiber multimode: 220m (fiber size 62.5/125μm) / 550m (fiber size 50/125μm), Double fiber single mode: 20/40/60/80Km Single fiber single mode: 20/40/60/80Km Five types of twisted pair: 100m
port	1 RJ45 port: Connect STP/UTP Category 5 twisted pair cable EIA568A/B 1 fiber port: Dual fiber multimode - SC (fiber size 50, 62.5/125μm) Dual fiber single mode - SC / FC fiber port (fiber size 9 / 125μm) Single fiber single mode - SC / FC fiber port (fiber size 9 / 125μm)
Conversion method	Media conversion
Delay	<10us
Bit error rate	<10-9
MTBF	100,000 hours
LED indicator	POWER (power), FX L/A (fiber connection), 1000M (electric port rate 1000M), 100M (electric port rate 100M), TP L/A (electric port connection), FDX (current working duplex state)
power supply	AC220/DC-48 (built-in)
Power consumption	≤5W
Operating temperature	-20~70°C
Working humidity	5%~90%
Storage temperature	-40~70°C
Storage humidity	5%~90% non-condensing

Apllication

* Extend Ethernet connection to 0~120km using fiber
* Create economical Ethernet fiber/copper fiber links for connecting remote subnets to larger fiber networks/backbone networks
* Convert Ethernet to fiber, fiber to copper/Ethernet, ensuring optimal network scalability to connect two or more Ethernet network nodes (for example, connecting two buildings in the same campus)
* Designed to provide high-speed bandwidth for demanding large workgroups that need to scale Gigabit Ethernet

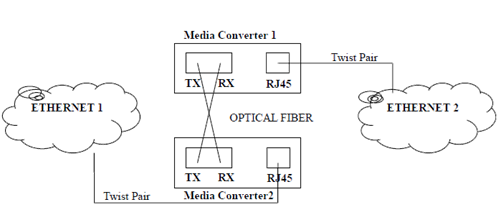

System Design

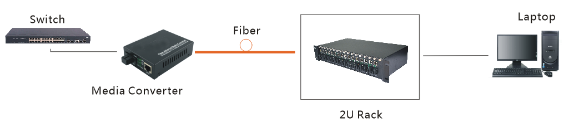

1. For the Internet

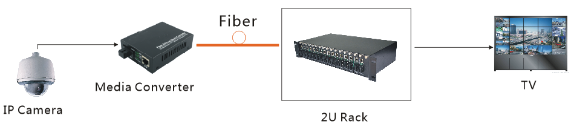

2.For CCTV Surveillance Security



Product Picture

10/100/1000M Dual fiber Media Converter

10/100/1000M Single Fiber Media Converter

Order Information

P/N	Data Rate	Fiber Type	Wavelength (nm)	Tx Power (dBm)	Rx Sensitivity (dBm)	Reach (KM)	Loss(dBm)
EFY-950GM	10/100/1000Mbps	MM	850	-9.5~4	-17	0.55	8
EFY-950GS-2	10/100/1000Mbps	MM	1310	-9~-3	-21	10	12
EFY-950GS-20	10/100/1000Mbps	SM	1310	-6~-1	-21	20	15
EFY-950GS-40	10/100/1000Mbps	SM	1310	-5~0	-24	30	20
EFY-950GS-60	10/100/1000Mbps	SM	1550	-5~0	-25	50	20
EFY-950GS-80	10/100/1000Mbps	SM	1550	-2~3	-25	80	25
EFY-950GS-10A/B	10/100/1000Mbps	SM	1310/1550	-6~-1	-22	10	22
EFY-950GS-20A/B	10/100/1000Mbps	SM	1310/1550	-6~-1	-22	20	22
EFY-950GS-40A/B	10/100/1000Mbps	SM	1490/1550	-6~-1	-22	40	22
EFY-950GS-60A/B	10/100/1000Mbps	SM	1490/1550	-6~-1	-22	60	22
EFY-950GS-80A/B	10/100/1000Mbps	SM	1490/1550	0~2	-25	80	25
