Mini 10/100M Media Converter
Mini 10/100M Media Converter
The Mini 10/100M Ethernet Media Converter can be used to convert between the electrical and optical interfaces of the Ethernet. The fiber optic transceiver includes an Ethernet electrical port and a quartz fiber interface, which extends the Ethernet transmission distance from 100 meters to 2 kilometers (multimode fiber) or 120 kilometers (single mode). Mode fiber). It can easily realize the interconnection between various network devices, and is suitable for network environments requiring high performance and high reliability such as telecommunications, broadcasting, broadband networks, security monitoring.
Features
Electric port supports 10M/100M adaptive
Support store-and-forward or passthrough mode
Support for link failover (LFP)
Optional dual fiber/single fiber, SFP, SC/FC/ST and other fiber interfaces
Dial switch supports multiple mode settings
DC 5-12 volt wide input range
Small form factor, 1U rack mount for easy installation, commissioning and transportation
Technical Specifications
Support standard
IEEE802.3, IEEE802.3U 100Base-Tx 100Base-FX
Input power requirement
DC 5-12 volts
Maximum power consumption
Less than 3 watts
range of working temperature
0~50°C
cooling method
Natural cooling
Storage temperature range
-20~85°C
Relative humidity
No more than 90%, no condensation
Dimensions (width x depth x height, mm)
60 x 90 x 20 (excluding the protruding part of the optical module)
System Design

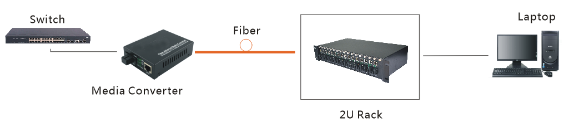

1.For the Internet

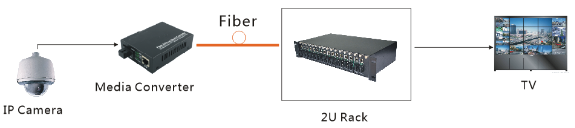

2.For CCTV Surveillance Security
Product Picture
Order Information
P/N
Date Rate
Fiber Type
Wavelength
(nm)
Tx Power
(dBm)
(dBm)
Reach
(KM)
Loss(dBm)
EFY-M950MM-2
10/100Mbps
MM
1310
-20~-12
-30
2
10
EFY-M950SM-25
10/100Mbps
SM
1310
-15~-7
-34
25
19
EFY-M950SM-40
10/100Mbps
SM
1310
-9~-5
-36
40
27
EFY-M950SM-60
10/100Mbps
SM
1310
-5~-2
-36
60
31
EFY-M950SM-80
10/100Mbps
SM
1550
-5~0
-37
80
32
EFY-M950SM-100
10/100Mbps
SM
1550
-3~0
-38
100
35
EFY-M950SM-120
10/100Mbps
SM
1550
0~5
-38
120
38
EFY-M950SM-2A/B
10/100Mbps
MM
1310/1550
-14~-8
-30
2
17
EFY-M950SM-25A/B
10/100Mbps
SM
1310/1550
-8~-3
-33
25
25
EFY-M950SM-40A/B
10/100Mbps
SM
1310/1550
-8~-3
-33
40
25
EFY-M950SM-60A/B
10/100Mbps
SM
1310/1550
-5~0
-37
60
30
EFY-M950SM-80A/B
10/100Mbps
SM
1490/1550
-0~0
-39
80
34
EFY-M950SM-100A/B
10/100Mbps
SM
1490/1550
-0~0
-39
100
34
EFY-M950SM-120A/B
10/100Mbps
SM
1490/1550
-0~0
-39
120
34
Rx Sensitivity
