Mini 10/100/1000M Media Converter
Mini 10/100/1000M Media Converter
The Mini 10/100/1000M Ethernet media converter can be used to convert between the electrical and optical interfaces of the Ethernet. The media converter includes an Ethernet electrical port and a quartz fiber interface, which extends the Ethernet transmission distance from 100 meters to 2 kilometers (multimode fiber) or 120 kilometers (single mode). Mode fiber). It can easily realize the interconnection between various network devices, and is suitable for network environments requiring high performance and high reliability such as telecommunications, broadcasting, broadband networks, security monitoring.
Features
The electrical port supports 10M/100M/1000M adaptive or forced to 1000M
Optical port supports 1000M or 100M
Support store-and-forward or passthrough mode
Support 9KB super long frame
Support for link failover (LFP)
Optional dual fiber/single fiber, SFP, SC/FC/ST and other fiber interfaces
Dial switch supports multiple mode settings
DC 5-12 volt wide input range
Small form factor, 1U rack mount for easy installation, commissioning and transportation
Technical Specifications
Support standard
IEEE802.3U, IEEE802.3Z 1000Base-Tx 1000Base-FX, 100Base-FX
Input power requirement
DC 5-12 volts
Maximum power consumption
Less than 3 watts
range of working temperature
0~50°C
cooling method
Natural cooling
Storage temperature range
-20~85°C
Relative humidity
No more than 90%, no condensation
Dimensions (width x depth x height, mm)
60 x 90 x 20 (excluding the protruding part of the optical module)
Application
* Extend Ethernet connection to 0~120km using fiber
* Create economical Ethernet fiber/copper fiber links for connecting remote subnets to larger fiber networks/backbone networks
* Convert Ethernet to fiber, fiber to copper/Ethernet, ensuring optimal network scalability to connect two or more Ethernet network nodes (for example, connecting two buildings in the same campus)
* Designed to provide high-speed bandwidth for demanding large workgroups that need to scale Gigabit Ethernet
System Design

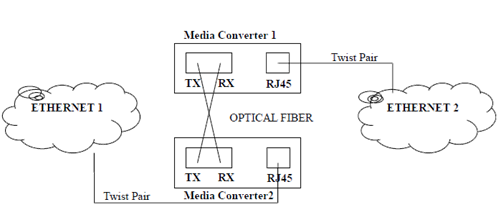

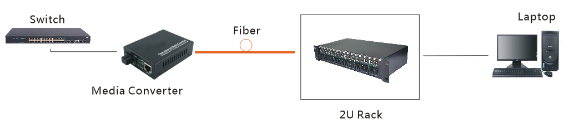

1.For the Internet

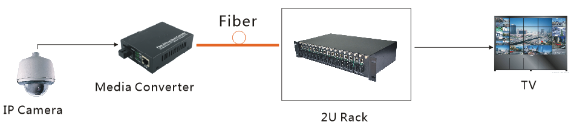

2.For CCTV surveillance security
Product Picture
Order Information
P/N
Data Rate
Fiber Type
Wavelength
(nm)
Tx Power
(dBm)
Rx Sensitivity
(dBm)
Reach
(KM)
Loss(dBm)
EFY-M950GM
10/100/1000Mbps
MM
850
-9.5~4
-17
0.55
8
EFY-M950GS-2
10/100/1000Mbps
MM
1310
-9~-3
-21
10
12
EFY-M950GS-20
10/100/1000Mbps
SM
1310
-6~-1
-21
20
15
EFY-M950GS-40
10/100/1000Mbps
SM
1310
-5~0
-24
30
20
EFY-M950GS-60
10/100/1000Mbps
SM
1550
-5~0
-25
50
20
EFY-M950GS-80
10/100/1000Mbps
SM
1550
-2~3
-25
80
25
EFY-M950GS-10A/B
10/100/1000Mbps
SM
1310/1550
-6~-1
-22
10
22
EFY-M950GS-20A/B
10/100/1000Mbps
SM
1310/1550
-6~-1
-22
20
22
EFY-M950GS-40A/B
10/100/1000Mbps
SM
1490/1550
-6~-1
-22
40
22
EFY-M950GS-60A/B
10/100/1000Mbps
SM
1490/1550
-6~-1
-22
60
22
EFY-M950GS-80A/B
10/100/1000Mbps
SM
1490/1550
0~2
-25
80
25
